p5.plotterControl

p5-plotter-control

a real-time pen plotter control library for p5.js

Hello world example

This is a p5.js library that allows for real-time control of GRBL-controllable pen plotters like those manufactured by iDraw / uunatek. With this library, you can control the pen plotter using p5.js-style shape functions. It is ideal for applications where you want to achieve direct, live control of the pen plotter, instead of plotting a finished file all at once as you might with other p5 libraries like p5.plotSVG. Please see these instructions for details on the workflow for exporting vector files for plotting from Inkscape to iDraw plotters.

This library uses the WebSerial implementation to control the pen plotter directly from the browser. Currently, WebSerial only works in Chrome/Chromium based browsers. A node.js relay based version is available in a separate branch, which may be useful if you need to run this on a non-Chromium browser.

The library consists of three components:

You can run the demo mode and examples directly from this repo. Clone the repo or download the project files to experiment locally.

Plotter Configuration

Before connecting, position the pen carriage in the “top right” corner of the page – the same corner used by the iDraw Inkscape plugin. Connecting to the plotter (see the Connect button, below) automatically sets this position as the machine’s zero point or “home” position.

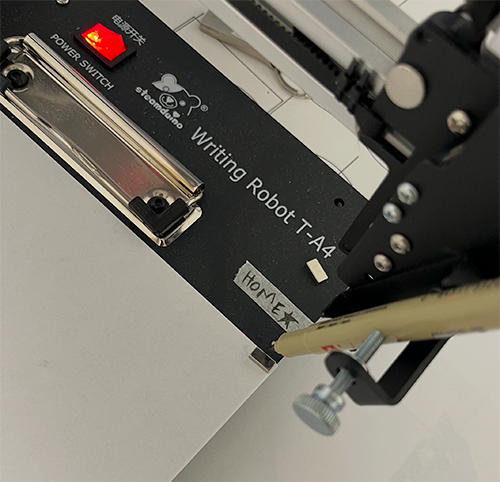

Zero position

Class Initialization

To use the library, create an instance of the GPlotter class. Make sure that the first two arguments – plotter page width and height – conform to the actual plotter hardware you have:

After initializing the plotter object, you can use plotter.screenWidth and plotter.canvasHeight to create the p5.js canvas, which will be proportionate to your respective paper size.

let plotter;

function setup() {
  plotter = new GPlotter(210,297,500);
  createCanvas(plotter.screenWidth, plotter.canvasHeight);
}

GPlotter Parameters

Creating a p5.js sketch with live plotter control

You can control the pen plotter using the GPlotter shape functions listed below. Standard p5.js shape functions – such as circle, rectangle, line, arc, etc – have equivalents within the gplotter class, which simultaneously draw the forms to the on-screen canvas, while generating and sending equivalent messages to the plotter.

Don’t call plotter shape functions unconditionally inside draw(). Since draw() runs every frame, an unguarded call fires dozens of times per second. It’s fine to call them from within draw() as long as the call is gated by discrete, one-shot logic (a timer, a flag, an event check) that lets it through exactly once, not on every frame. Event handler functions like mousePressed() and keyPressed() are discrete by nature — they only fire once per event, not continuously — which makes them natural places to call shape functions directly, no extra guard needed. Please see the included examples for demonstrations of these kinds of discrete events.

Display Method

plotter.display()

Displays all drawn shapes on the on-screen canvas using p5.js drawing functions. This is the only function that should run repeatedly within draw(), as its sole function is to display the drawn shapes in the browser, not to control the plotter.

Shape Functions

Here is a list of all the draw functions available in the GPlotter class that users can call to create shapes. Each function adds a shape to the drawnShapes array and optionally generates G-code if plotting is enabled.

1. plotter.circle(x, y, d, fill)

Draws a circle at a specified position with a given diameter.

Parameters:

2. plotter.rectangle(x, y, w, h, fill)

Draws a rectangle at a specified position with a given width and height.

Parameters:

3. plotter.arc(x, y, w, h, start, stop)

Draws an arc with specified dimensions and angles.

Parameters:

4. plotter.line(x1, y1, x2, y2)

Draws a straight line between two points.

Parameters:

5. plotter.ellipse(x, y, w, h, fill)

Draws an ellipse at a specified position with given width and height.

Parameters:

6. plotter.point(x, y)

Draws a single point at a specified position.

Parameters:

7. Custom Shape Functions

To create custom shapes, use the following sequence of functions:

plotter.beginShape()

Starts recording vertices for a custom shape.

plotter.vertex(x, y)

Adds a straight-line vertex to the custom shape.

plotter.curveVertex(x, y)

Adds a curve vertex to the custom shape (for smooth curves).

plotter.endShape(close, fill)

Finishes recording the custom shape and optionally closes and fills it.

Parameters:

8. plotter.drawString(text, x, y, scale)

Draws a string of vector text using a built-in Hershey-style font (“futural”), starting at the given position. Uses Hershey Text functions by Allison Parrish as implemented by Golan Levin

Parameters:

Example:

plotter.drawString("Hello Plotter!", 50, 200, 0.5);

9. Free Draw Functions

Draws a continuous, arbitrary-length stroke by feeding a start point, a stream of points, and an end call – useful for click-and-drag or mouse-tracked drawing, where the full path isn’t known in advance. Unlike the other shape functions, the pen stays down between calls, so the whole path is drawn as one continuous line rather than separate segments. If the path goes outside the plottable area (defined by the margins), the pen automatically lifts, and lowers again if the path re-enters.

plotter.startFreeDraw(x, y)

Lowers the pen at (x, y) and begins a new free-draw stroke.

plotter.freeDrawTo(x, y)

Draws a continuous line segment from the last free-draw point to (x, y). Has no effect if startFreeDraw() hasn’t been called (or if endFreeDraw() already ended the stroke).

plotter.endFreeDraw()

Ends the current free-draw stroke and lifts the pen.

Example:

function mousePressed() {
  plotter.startFreeDraw(mouseX, mouseY);
}

function mouseDragged() {
  plotter.freeDrawTo(mouseX, mouseY);
}

function mouseReleased() {
  plotter.endFreeDraw();
}

Example Usage

// Draw a filled circle
plotter.circle(100, 100, 50, true);

// Draw a rectangle without fill
plotter.rectangle(150, 150, 80, 60, false);

// Draw an arc
plotter.arc(200, 200, 100, 100, 0, PI);

// Draw a line
plotter.line(50, 50, 200, 50);

// Draw a filled ellipse
plotter.ellipse(300, 300, 100, 60, true);

// Draw a filled custom shape
plotter.beginShape();
plotter.vertex(100, 100);
plotter.vertex(150, 200);
plotter.vertex(200, 100);
plotter.endShape(CLOSE, true);

On-Screen UI

Port Management Controls

Plotter Controls

Parameter Controls

Margin Controls

Plotter Position Controls

Settings

Demo Mode

Function Reference

These are functions within the GPlotter class that can be accessed by advanced users as methods of the plotter instance.

toggleEnabled()

Enables/disables plotter functionality.

toggleConnection()

Toggles the Web Serial connection.

connectToPort()

Opens the browser’s native device picker and connects to the chosen serial port.

disconnectFromPort()

Disconnects from the current serial port.

onMessage(data)

Handles a line of data read from the serial port.

updateFeedRate()

Updates G-code feed rate.

updateCuttingDepth()

Updates G-code cutting depth.

updateFillGap()

Updates shape fill spacing.

setNewZero()

Sets current position as origin.

returnToZero()

Moves tool to origin.

display()

Draws shapes on canvas.

circle(x, y, d, fill)

Draws circle and generates G-code.

circleToGCode(x, y, d, fill)

Generates circle G-code.

line(x1, y1, x2, y2, angle = 0)

Draws line and generates G-code.

lineToGCode(x1, y1, x2, y2)

Generates line G-code.

rectangle(x, y, w, h, fill, angle = 0)

Draws rectangle and generates G-code.

rectangleToGCode(x, y, w, h, fill, angle = 0)

Generates rectangle G-code.

arc(x, y, w, h, start, stop, angle = 0)

Draws arc and generates G-code.

arcToGCode(x, y, w, h, start, stop, angle = 0)

Generates arc G-code.

normalizeAngle(angle)

Normalizes angle between 0 and 2π.

beginShape()

Starts a custom shape.

vertex(x, y)

Adds vertex to shape.

curveVertex(x, y)

Adds curve vertex.

endShape(close, fill)

Ends shape definition, generates G-code.

generateGCodeForCustomShape(vertices, close, fill, fillGap)

Generates G-code for custom shape.

catmullRom(t, p0, p1, p2, p3)

Computes Catmull-Rom spline point.

ellipse(x, y, w, h, fill, angle)

Draws ellipse and generates G-code.

ellipseToGCode(x, y, w, h, fill, angle)

Generates ellipse G-code.

point(x, y)

Draws a point.

pointToGCode(x, y)

Generates point G-code.

drawString(str, x, y, sca)

Draws a string of Hershey-font text starting at (x, y), scaled by sca.

drawChar(c, bCentered = false)

Draws a single Hershey character at the origin. Used internally – drawString is the normal entry point for text.

getPathCommandsForText(s)

Converts a text string into a list of vector drawing commands using the built-in Hershey font.

getPathCommandsForChar(s, offset)

Converts a single glyph’s Hershey path string into a list of drawing commands, offset horizontally.

drawPath(cmds, x, y, sca)

Draws a list of vector path commands (as produced by getPathCommandsForText), lifting the pen between separate strokes.

startFreeDraw(x, y)

Lowers the pen and begins a new free-draw stroke at (x, y).

freeDrawTo(x, y)

Draws a continuous line segment from the last free-draw point to (x, y), keeping the pen down.

endFreeDraw()

Ends the current free-draw stroke and lifts the pen.

Notes

Issues and future development

For now, this project only works with GRBL-based plotters like those manufactured by iDraw/uunatek. EiBotBoard-based plotters like the Axidraw use a different control protocol. It may be possible in the future to implement Axidraw control using the ebb-control js wrapper by @jmpinit.

Other p5.js pen plotter libraries

Acknowledgements

Thank you to @NooraLiu and @beboop-code for your valuable contributions to this project. Thank you to @IDMNYU for providing space, time and support to develop this work. This project was funded through the Data Fluencies project.
